Pantalla Táctil LCD DSI 7" Waveshare 1024x600 para Raspberry Pi

Name: Pantalla Táctil LCD DSI 7" Waveshare 1024x600 para Raspberry Pi
Brand: waveshare
SKU: B09KCQ7T79
Price: 152891 ARS
Availability: InStock
Rating: 4.2 (11 reviews)

1 / 7

Ver más productos marca waveshare

Pantalla Táctil LCD DSI 7" Waveshare 1024x600 para Raspberry Pi

4,2

(11 opiniones)

$152.891

+ impuestos: $32.107

Cantidad:

Compra protegida
Envío a todo el país
Garantía de entrega

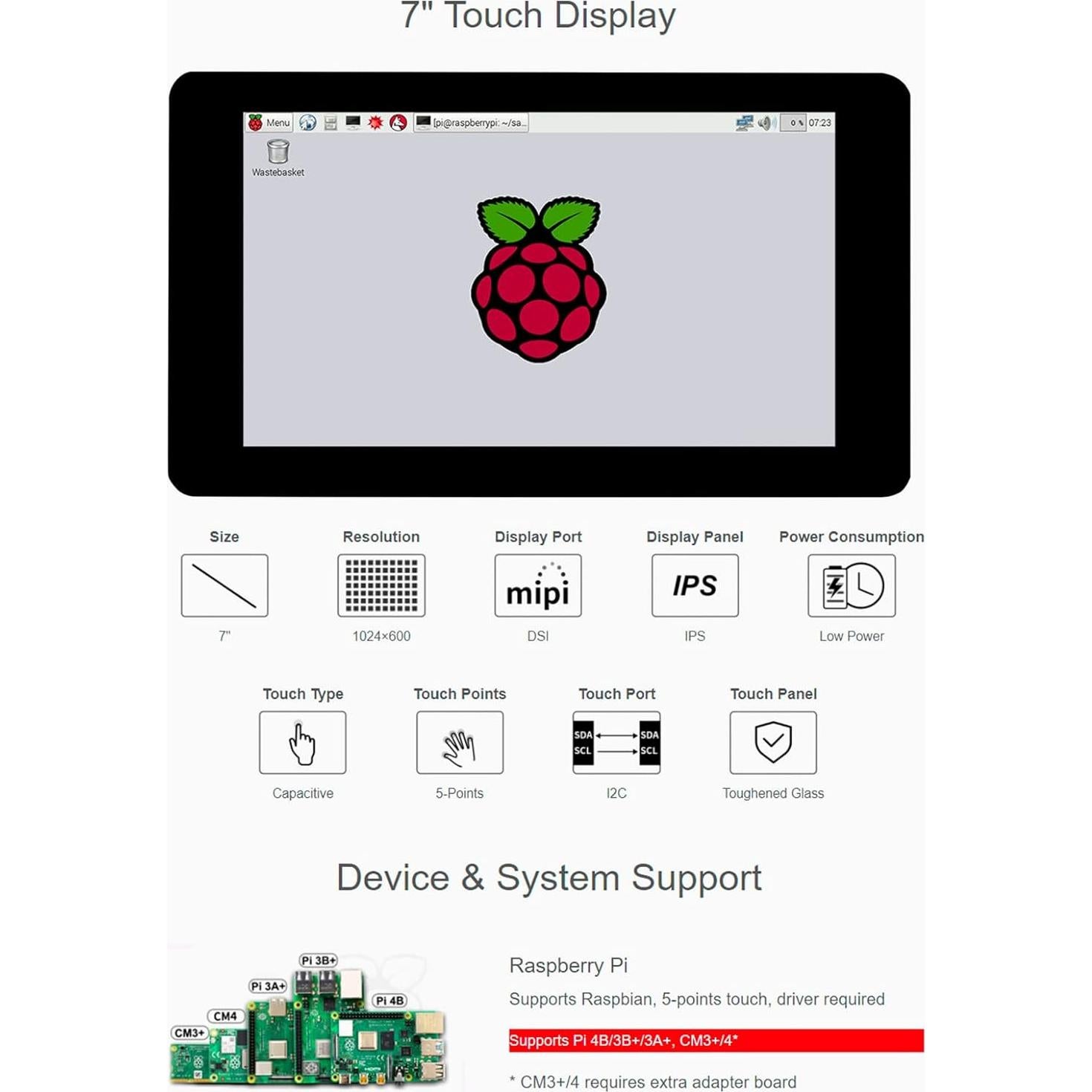

Características destacadas

Pantalla LCD DSI de 7 pulgadas, interfaz DSI, resolución 1024x600, pantalla IPS, interfaz MIPI DSI, pantalla táctil capacitiva para Raspberry Pi.
Soporta Raspberry Pi 4B/3B+/3A+ y Módulo de Cómputo 4 (CM4)/Módulo de Cómputo 3+ (CM3+). Pero CM3+/4 requiere una placa adaptadora adicional.

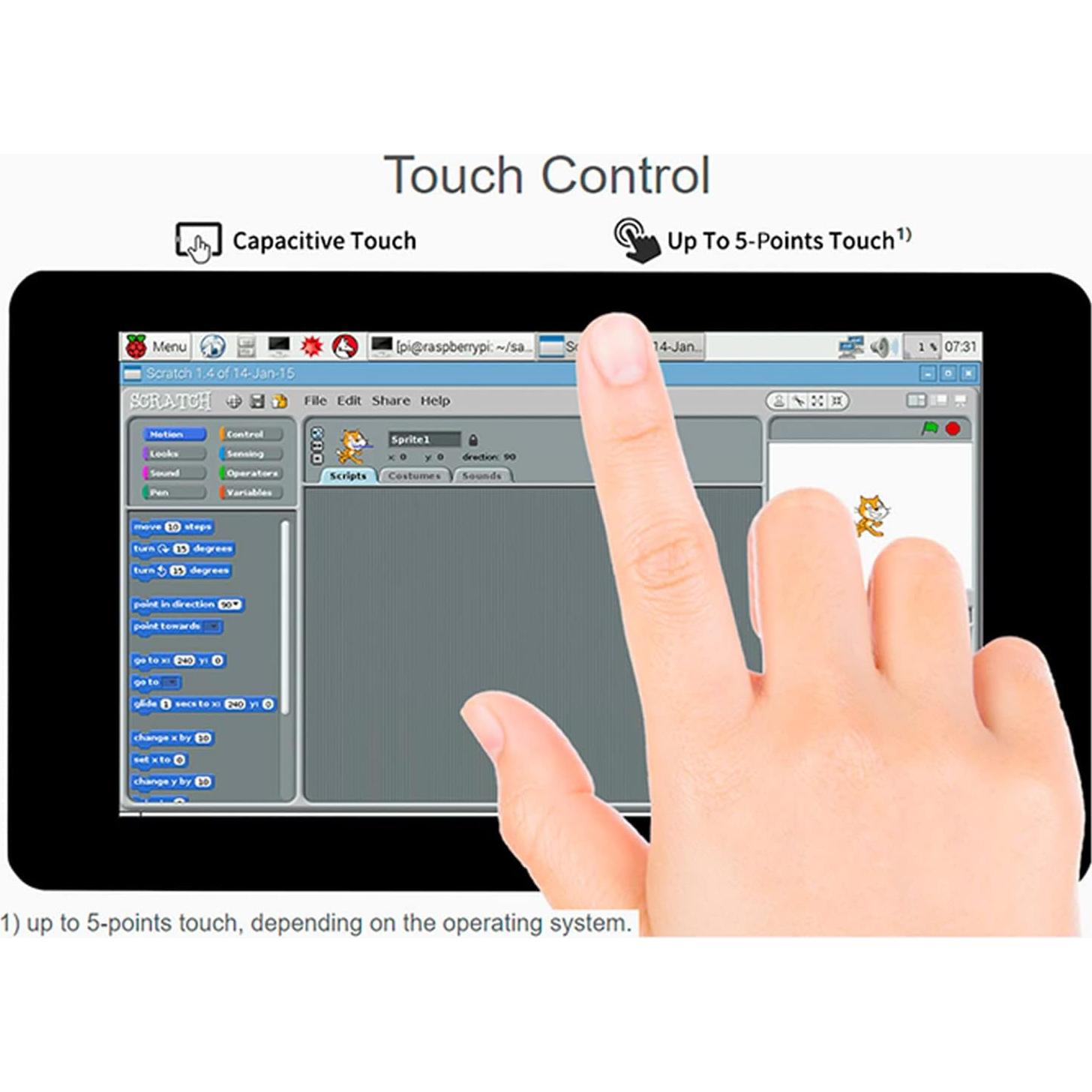

Soporta Raspbian, pantalla táctil de 5 puntos, controlador requerido. Cuando funciona con Raspberry Pi, se proporciona el controlador de Raspberry Pi OS (Raspbian).

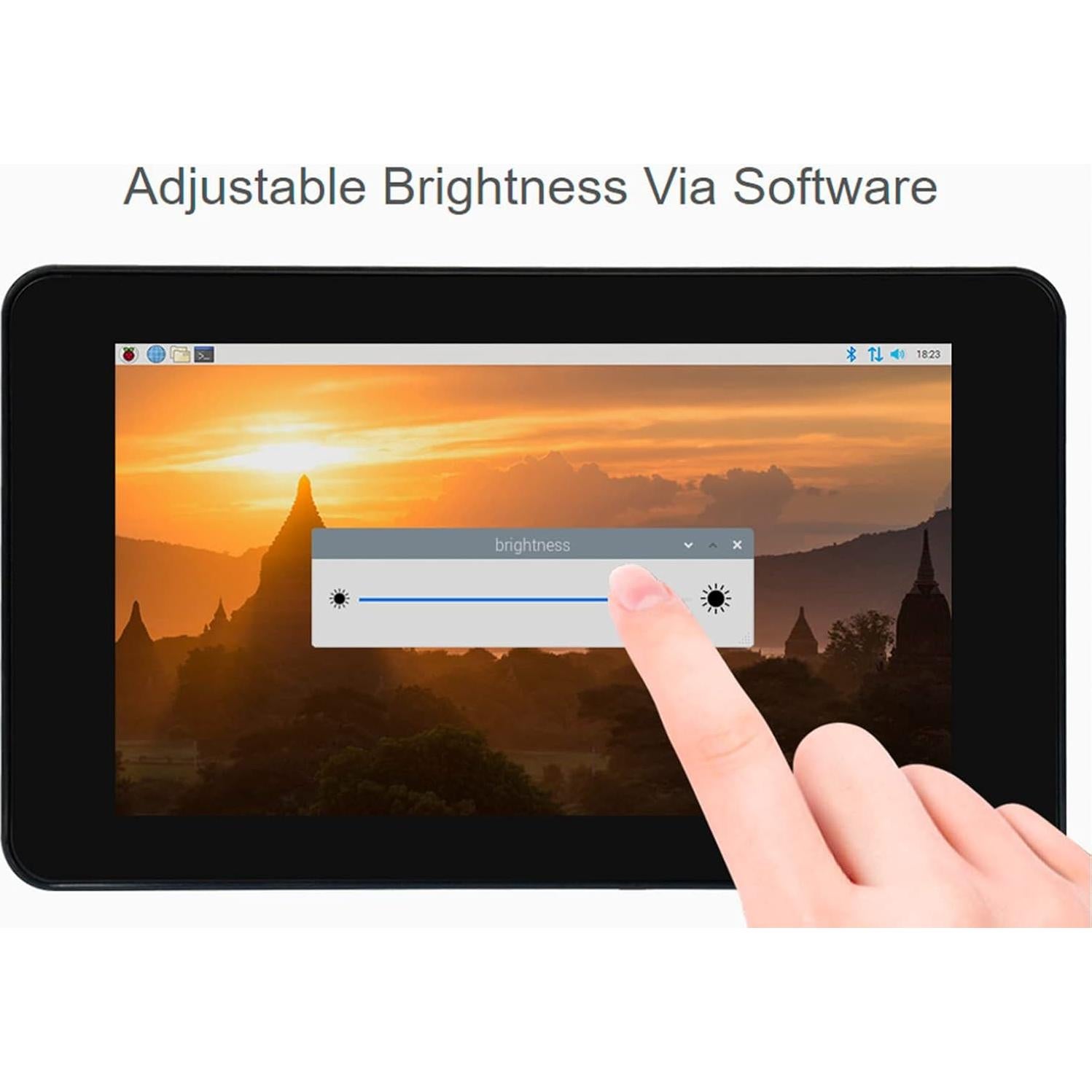

Panel táctil capacitivo de vidrio templado, dureza 6H. Conduce directamente la LCD a través de la interfaz DSI de Raspberry Pi, tasa de refresco de hasta 60Hz. Brillo ajustable por software.

Opiniones de compradores

4,2

11 opiniones

72%

11%

17%

CoolRodz

I purchased this screen to use in the SmartiPi Touch Pro - Case for The Official Raspberry Pi 7" Touchscreen Display and it fits with some alterations to the case to get everything to line up. Once everything was mounted getting this "Plug & Play" screen to lightup took a lot of research and additional coding to come alive. This only AFTER loading the proper drivers from WaveShare for this specific screen, as the plain vanilla waveshare drivers WILL NOT WORK! .Then the real problems began, ge...

Cedric Chase

Like some other reviewers - I thought the screen was DOA, but be sure to check the documentation they've linked. You need to paste a couple of lines in the config.txt file for it to work. This is what worked for my Pi 3B+, no parenthesis: (dtoverlay=vc4-kms-v3d#DSI1 Usedtoverlay=vc4-kms-dsi-waveshare-panel,7_0_inchC,i2c1)

ANONYMOUSAMAZONCUSTOMER

Could not power up, no matter what combination of Pi, cable and power cords I used. Spent four weeks going back and fourth with Waveshare support, being asked repeatedly to make sure I used THEIR software and that would fix the problem. (Hard to use software when the screen DOES NOT POWER UP). After finally admitting it was dead, Waveshare decided that since I didn't buy it from them, they weren't responsible for it. Of course, they waited long enough that now I can't return it. So I'm out $7...

tbraf

DOA, Driver board ok, display dead. Spend a little more for certified parts .

Descripción

Descripción general: Pantalla LCD DSI de 7 pulgadas, interfaz DSI, resolución 1024x600, pantalla IPS, interfaz MIPI DSI, pantalla táctil capacitiva para Raspberry Pi. Características: 1) Soporta Pi 4B/3B+/3A+ y Módulo de Cómputo 4 (CM4)/Módulo de Cómputo 3+ (CM3+). Pero CM3+/4 requiere una placa adaptadora adicional. 2) Soporta Raspbian, pantalla táctil de 5 puntos, controlador requerido. 3) Cuando funciona con Raspberry Pi, se proporciona el controlador de Raspberry Pi OS (Raspbian). 4) Panel táctil capacitivo de vidrio templado, dureza 6H. 5) Conduce directamente la LCD a través de la interfaz DSI de Raspberry Pi, tasa de refresco de hasta 60Hz. 6) Brillo ajustable por software. Recurso de desarrollo/Manual de usuario: bit.ly/3PB6R3A CONTENIDO DEL PAQUETE: Pantalla LCD DSI de 7 pulgadas (C) x1 FPC 15PIN 1.0 pitch 50mm (lados opuestos) x2 cable 2*2PIN 6cm x1 paquete de tornillos x1
